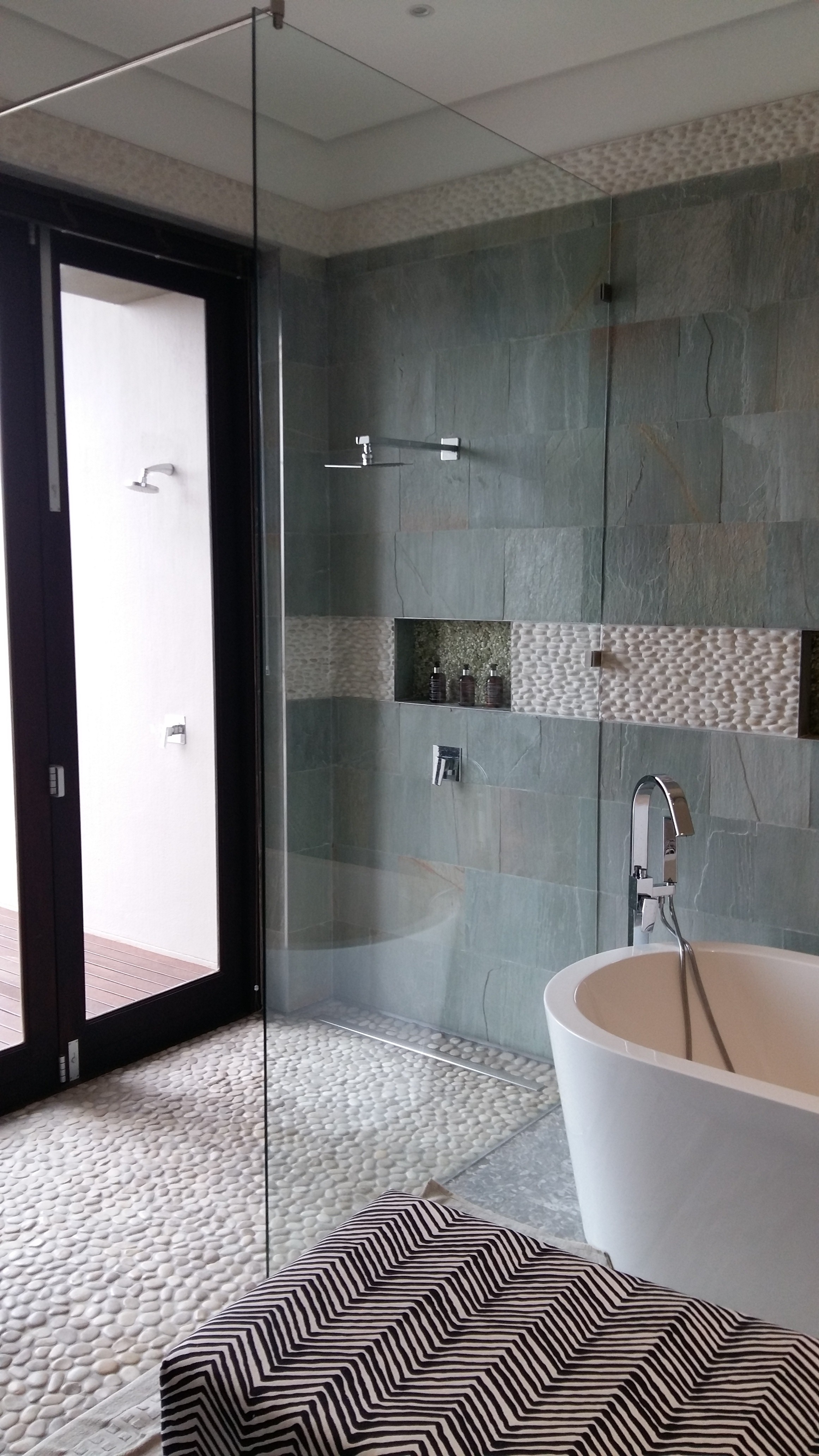

• This product will give the impression of unhindered space, luxury, and pure indulgence.
• This is certainly our clients most popular choice, a shower enclosure where there is on trim or frame visible, adding the feeling of space within the bathroom.
• All that is visible in this shower enclosure are the artistically designed, high quality hinges and brackets.
• When designing and installing your frameless shower cubical,

  Shower Innovation

  adheres rigidly to all statutory specifications and regulations. Specifically, those regulated by South African National Standard (SANS)

• The design of your shower will often be a balance of what you desire, in conjunction with the safety standards.

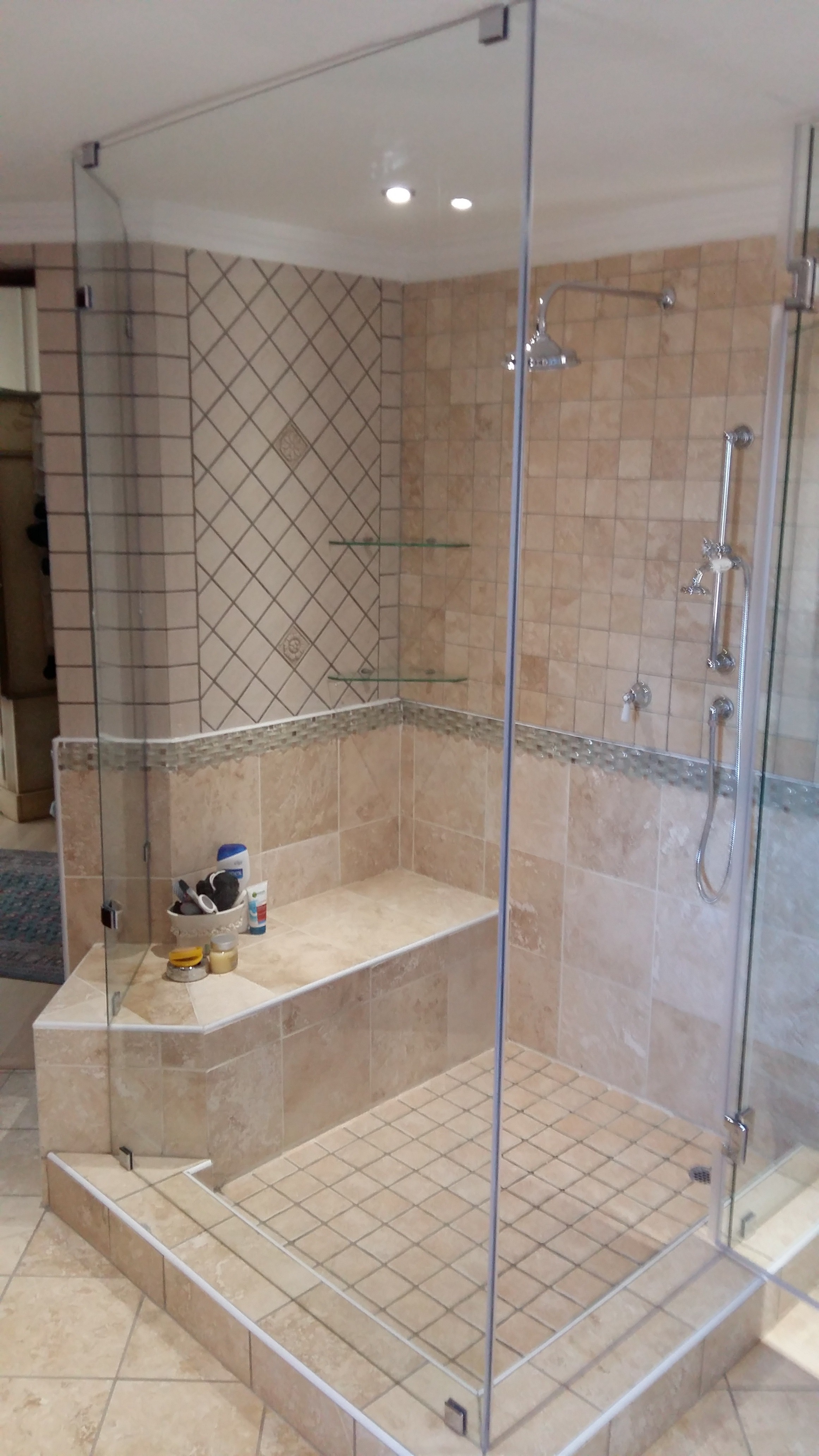

• Glass shelves are often used to increase stability of the enclosure, but then also serve as a handy accessory. Dependant on the design, a stability bar may in some cases be required. This can be viewed in the section Semi farmed showers.

• Shower Innovation

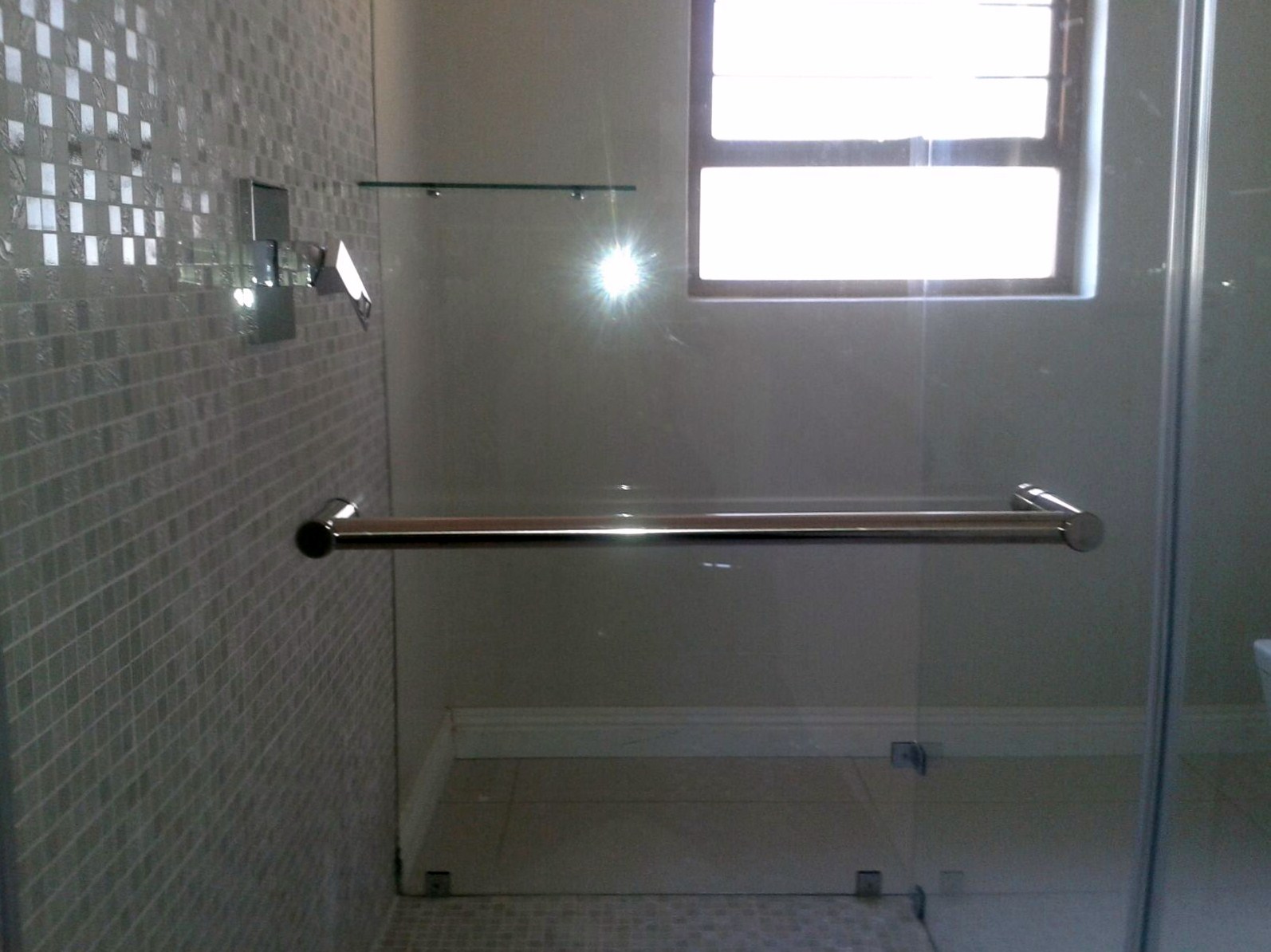

  supplies a range handles and glass mounted towel tails form which you can select.

• This product has no need for unsightly and bulky magnets, as our quality hinge mechanism has an over closing spring action. The only need is for an almost invisible gasket onto which the door can seal.

Specification:

• Toughened Safety glass is used with a thickness of 10mm, 8mm or 6mm depending on the design specification.
• More information on

  Shower Innovation

  hardware is available under Componentry.

• Read more on Glass Specifications, to which Shower Innovation adheres.

• This product is the feeling of luxury, with only the required frame being visible.
• Various options are available in this range, all of which are dependent of individual requirement, as well as the structural needs pertaining to the partial framing of the glass shower enclosure.
• Where it may be required to use a frame on your shower cubical, would be in the event of:

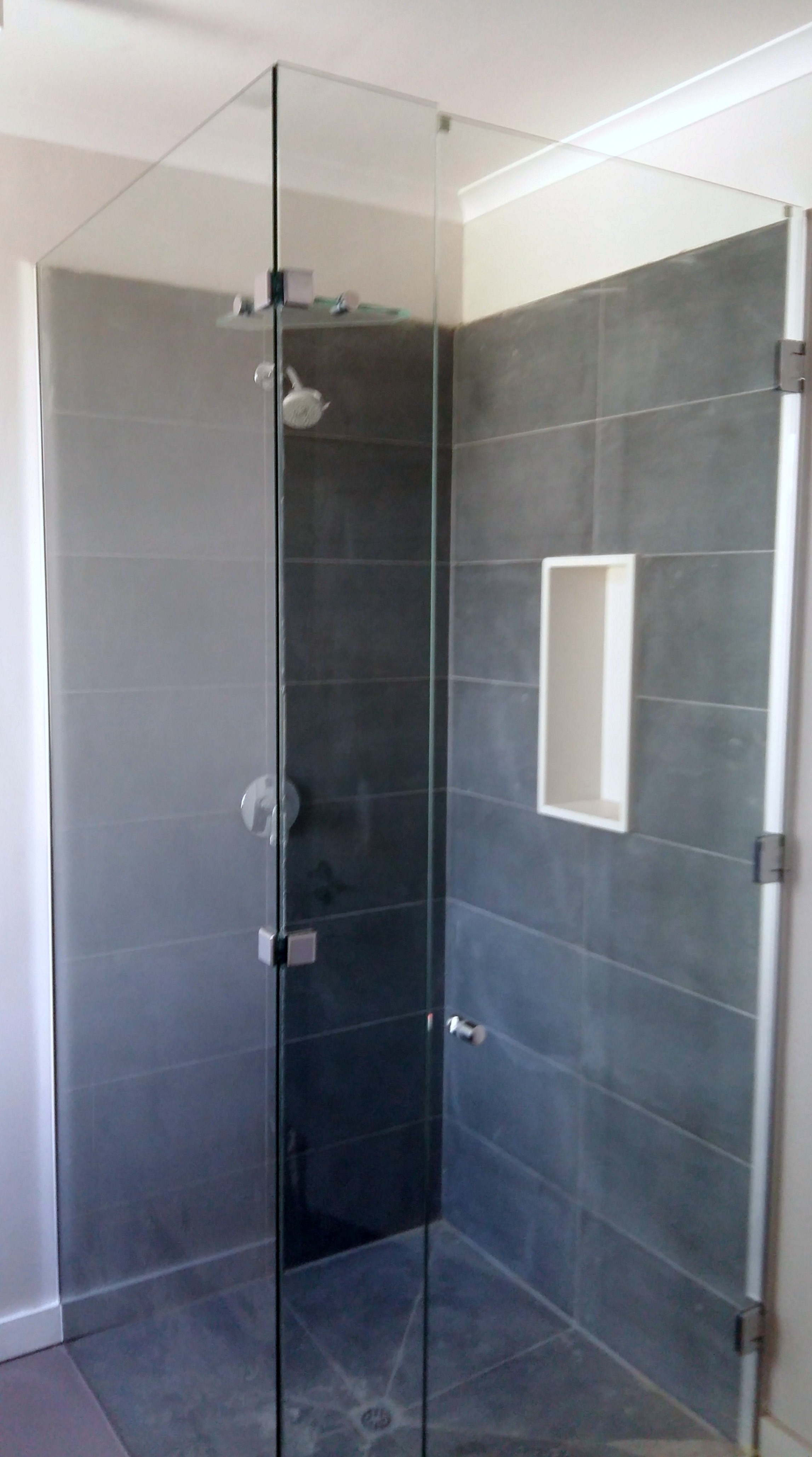

If you are wanting to use a pivot shower door, then a header rail would be required. Header rails may, on large shower units, be required for stability and safety. You may want your shower cubical to have a sliding door mechanism. Sometimes for safety, the glass may need to sit in a channel which is attached to the wall, floor, ceiling or both edge. In the event that the shower unit may need to be attached to a soft ceiling, a channel will be required. If a surface is uneven to the degree that the glass cannot be shaped, a channel will be used to level up.

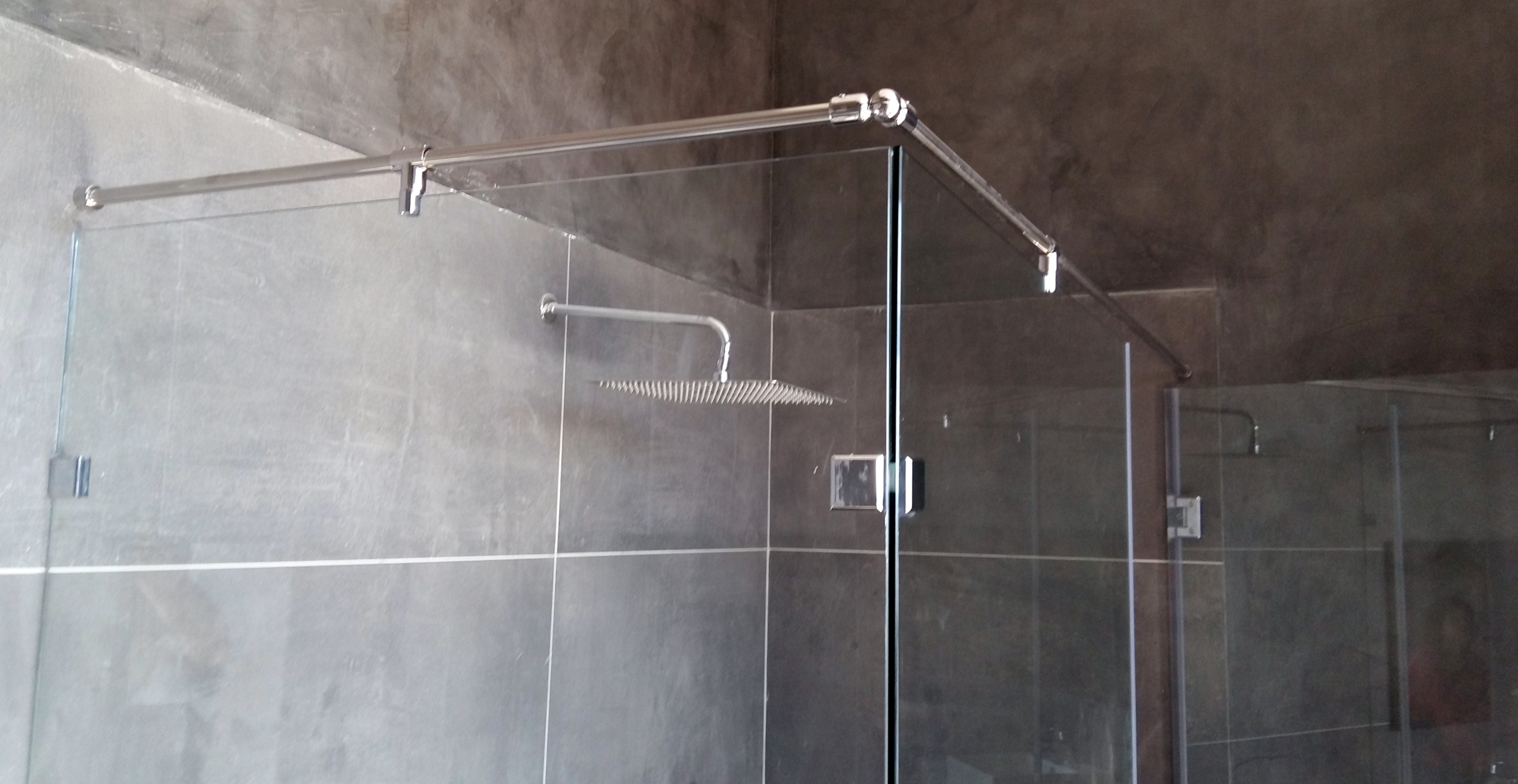

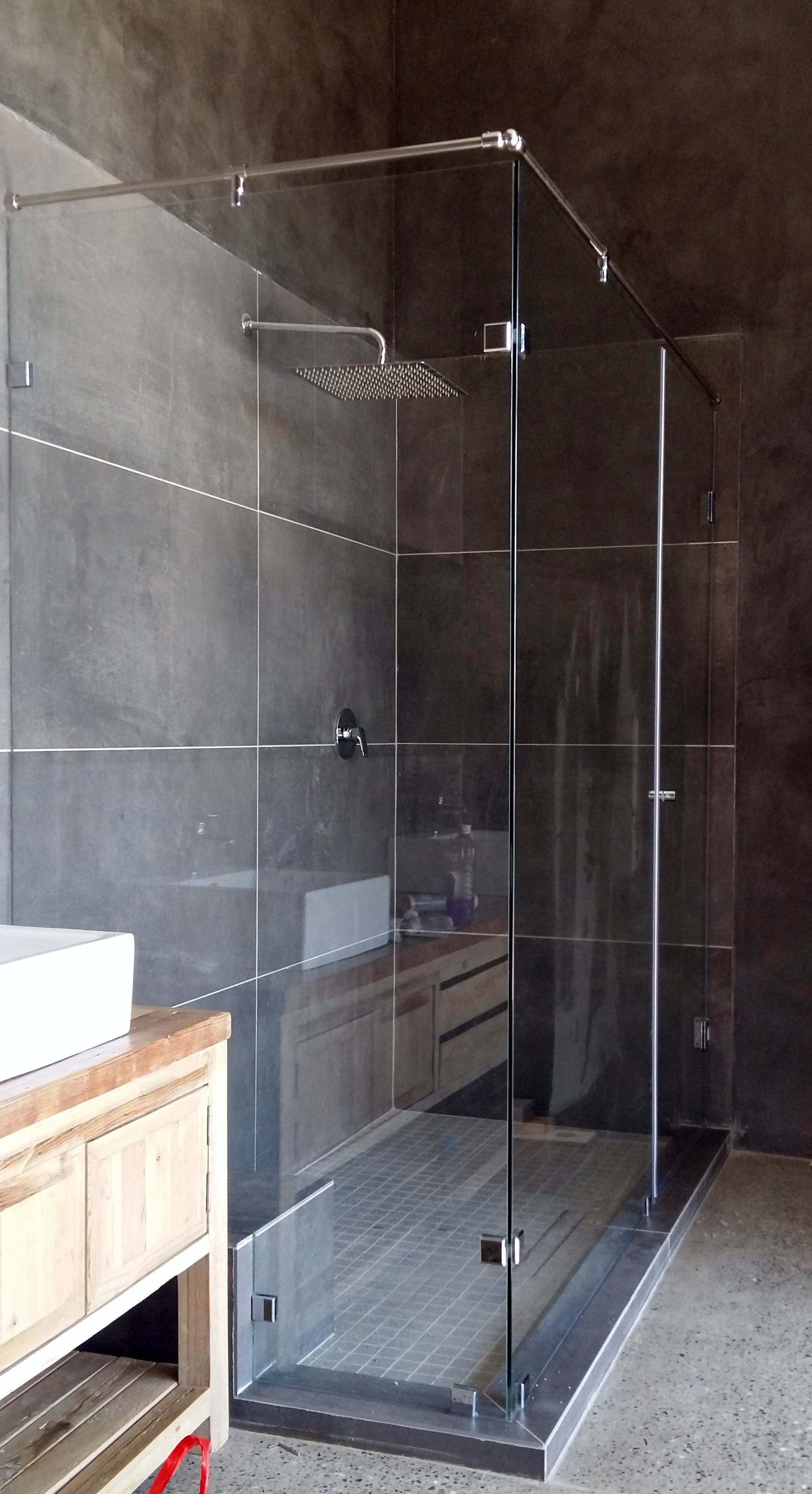

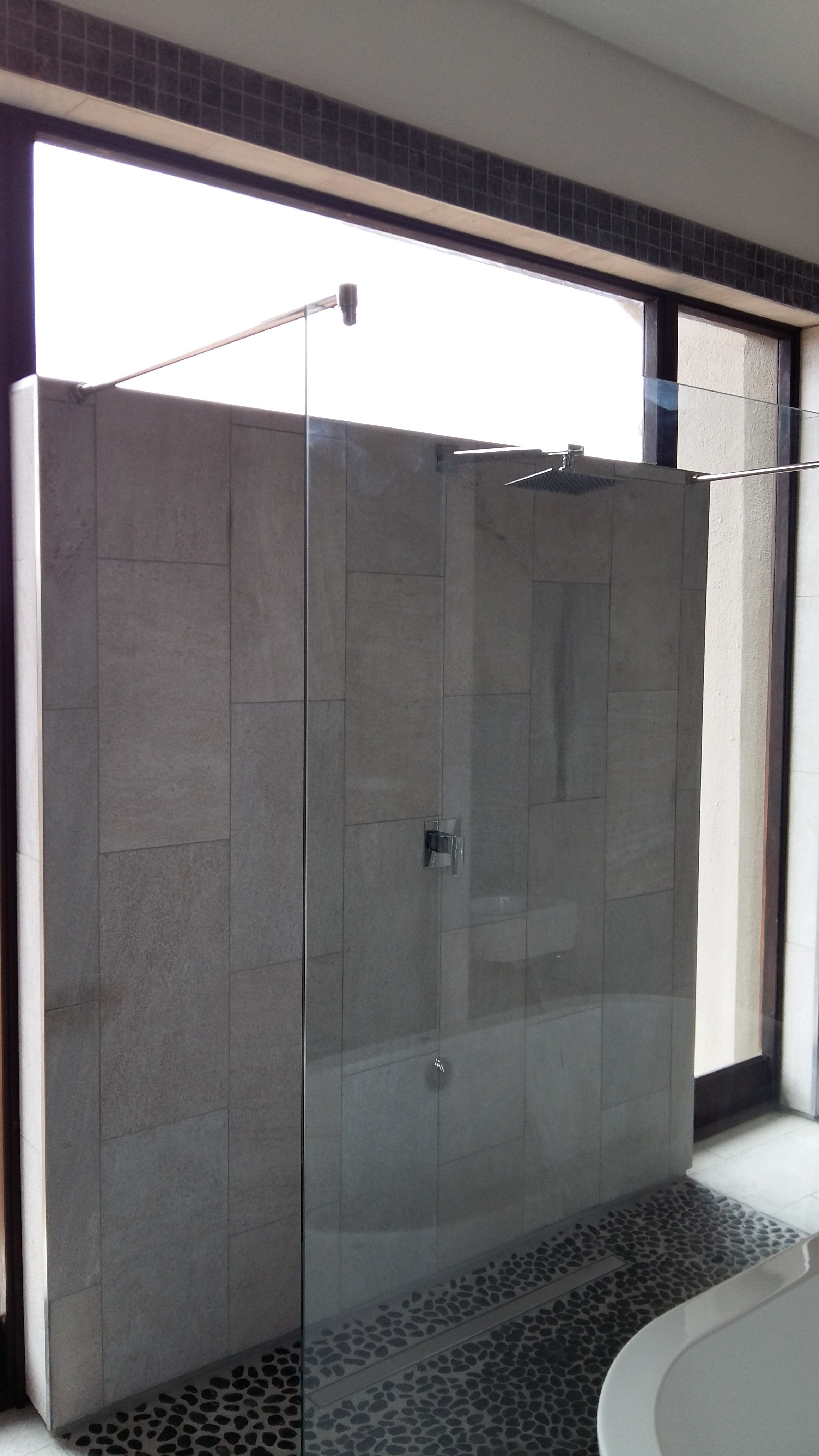

• Walk in screen showers, in most instances, will need a stabilizing bar, if the panel extends beyond a specific span.
• Brackets may also be needed, depending on the design. More information on

  Shower Innovation

  hardware is available under Componentry.

• Shower Innovation

  experienced designers will keep any frame section to only what is required for the required strength and safety, while still creating a design of class and elegance.

• In this range, there is no need for unsightly and bulky magnets, as our quality hinges have an over closing spring action. The only need is for an almost invisible gasket onto which the door can seal. See Componentry.

Specification:

• In most cases, the Toughened Safety Glass thickness will start from 8mm upwards, dependent on the pane size and legal safety regulations.
• Read more on Glass Specifications, to which Shower Innovation adheres.

Unlike many framed shower product on the South African Market market, spare parts are readily available for Shower Innovation‘s framed product range. Product Available:

• Shower Innovation

  Pivot Doors with return panels, or inline panels

• Shower Innovation

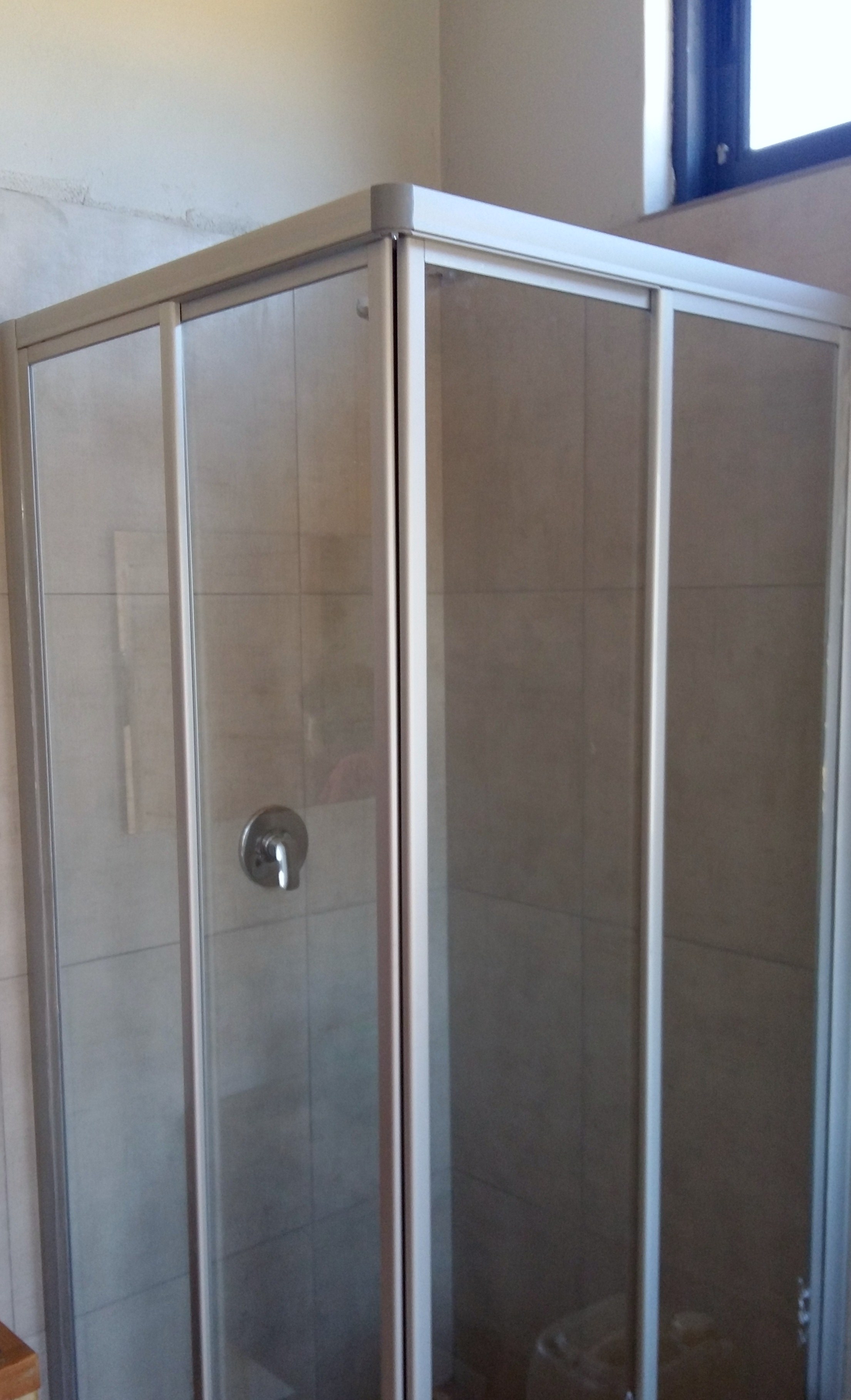

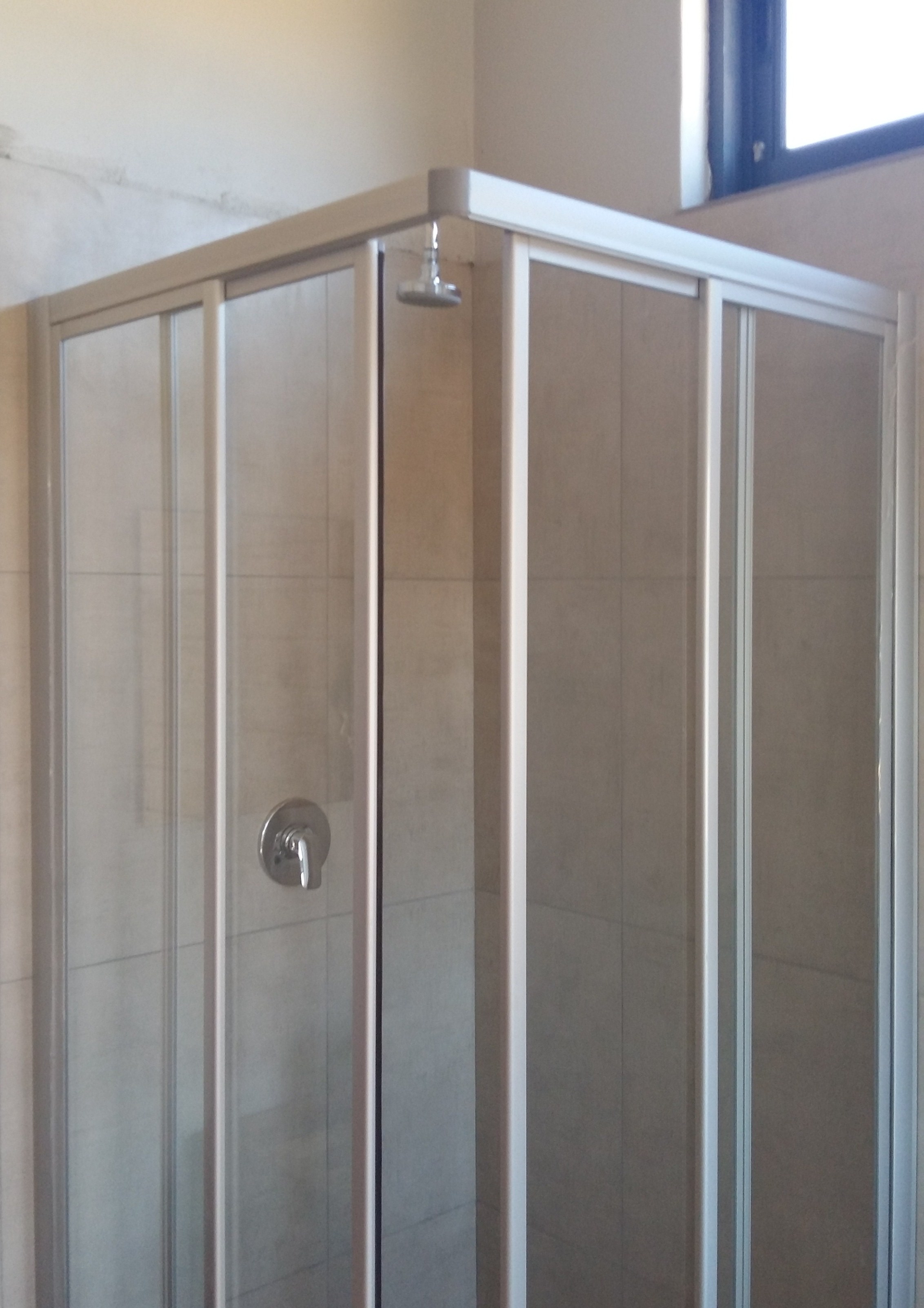

  Corner entry sliders,

• Shower Innovation

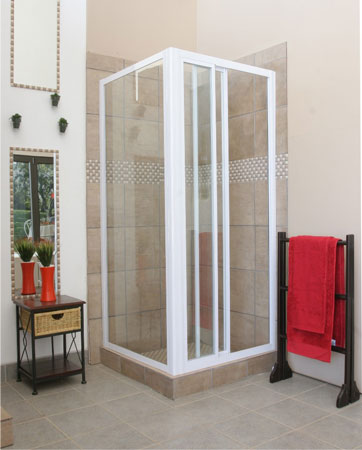

  Tri Slider door with return panels, or inline panels

• Shower Innovation

  Pentagon, this being a 135 degree door and two return panels.

These products are available in white and satin silver aluminium, with clear or obscure Toughened safety Glass.

All

Shower Innovation

products and the installation there of, will carry a twelve month warrantee.

Bath screens are available in various designs. Although

Shower Innovation

stocks certain standard product lines, the bath screen can also be bespoke designed to the clients requirements.
Variety:

• Fixed, non-moving, screen attached to the wall.
• Single moving panel from the wall.
• Folding bath screen, hinged off a fixed panel
• Multiple moving panels which stack to the side when not in use.
• All aluminium is available in white and satin silver.
• All hinges are in bright polished silver.
• See componentry for more specifications.

Shower Innovation

has selected components based on the quality, strength and corrosion resistance properties.

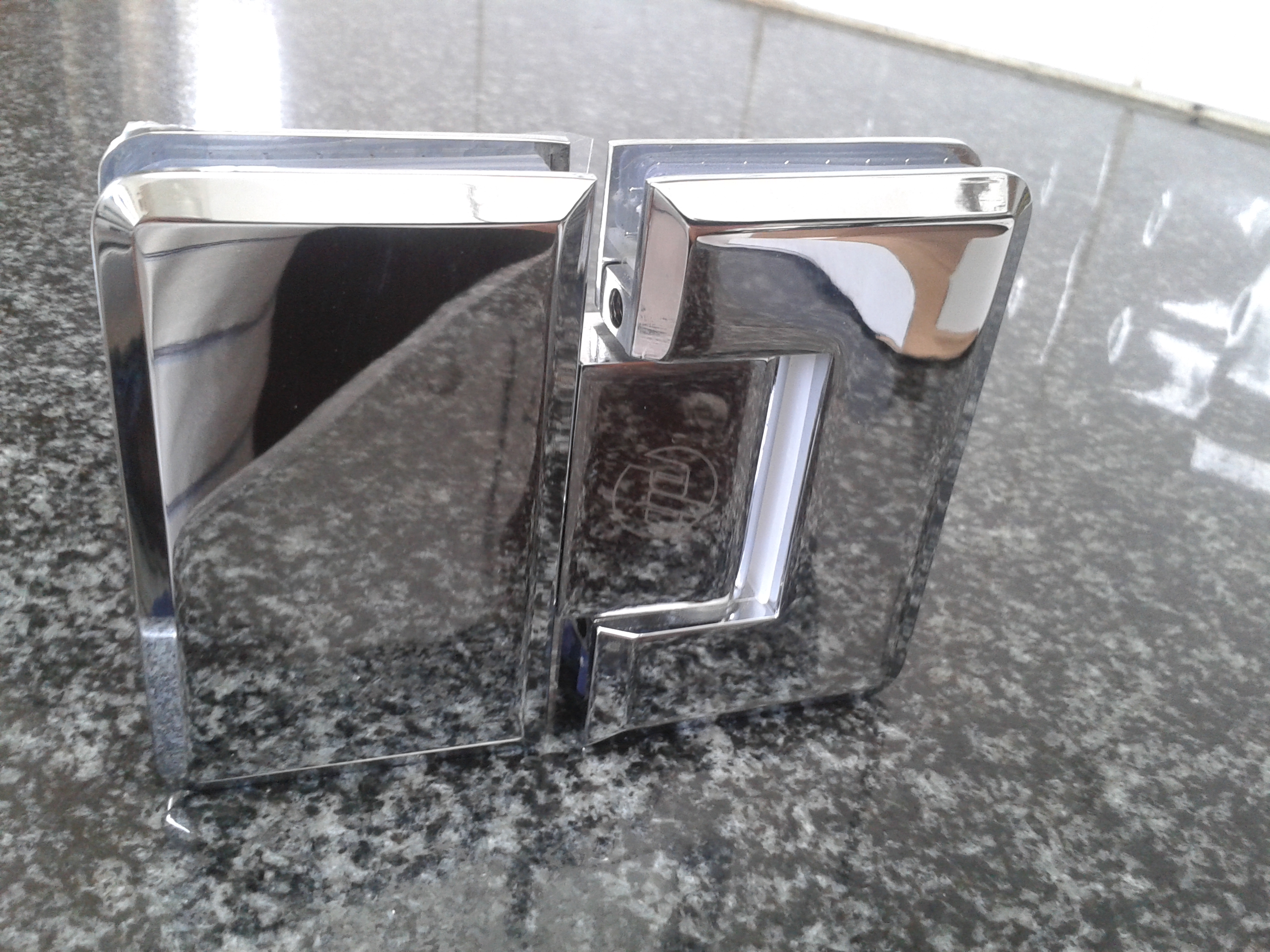

Hinges

As a standard,

Shower Innovation

makes use of high quality hinges which are sprung loaded and over closing, thus our installations have no need for bulky magnets to seal the door. All that is required is a thin clear closing gasket for the sprung hinge door to close against.

These

Shower Innovation

hinges have been tested to endure 10 000 opening cycles at a door weight of 35Kg per hinge pair, and a weight of 45Kg per three hinges, in accordance with National Building Regulations.

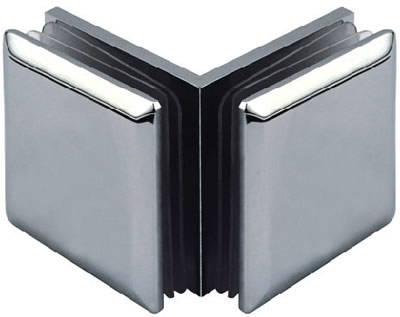

Components with high exposure to water and heat as in the case of hinges and brackets:

“Zamak 2”, an alloy composed of Zink, Magnesium and Aluminium was selected for its properties of excellent strength, corrosion/oxidisation properties, and Chrome plating bonding qualities.

Components with Medium to high exposure to water and heat, such as towel rails and knobs:

“Brass”, an alloy consisting of Zink and Copper.

Components with medium exposure to water and heat, such as Stability bars and shelf brackets:

Brass or 304 Stainless steel is used.

Silicones:

Silicones are used for sealing of the shower. Product used here is of high quality and are mould resistant.

Shower Innovation

will only make use of Toughened Safety Glass in its installation. The thickness of the glass will range between 6mm, 8mm & 10mm, depending on the design, safety and compliance with the regulations.

Shower Innovation

adheres rigidly to all South African National Standards (SANS) and National Building Regulations, specifically to:

• SANS 10137 & SANS 1263 Part 1:

  where applicable to Human impact in the case of shower Glass.

• SANS 10160 & SANS 10400 Part D:

  being applicable to Balustrading on landings and stairs, as well as Balustrading guarding swimming pool.

• Details pertaining to the specification above can be obtained through the South African Glass institute. (SAGI)

All

Shower Innovation

products and the installation there of, will carry a twelve month warrantee.
